Mamiya Press Super 23
Users Guide

Nomenclature

Nomenclature

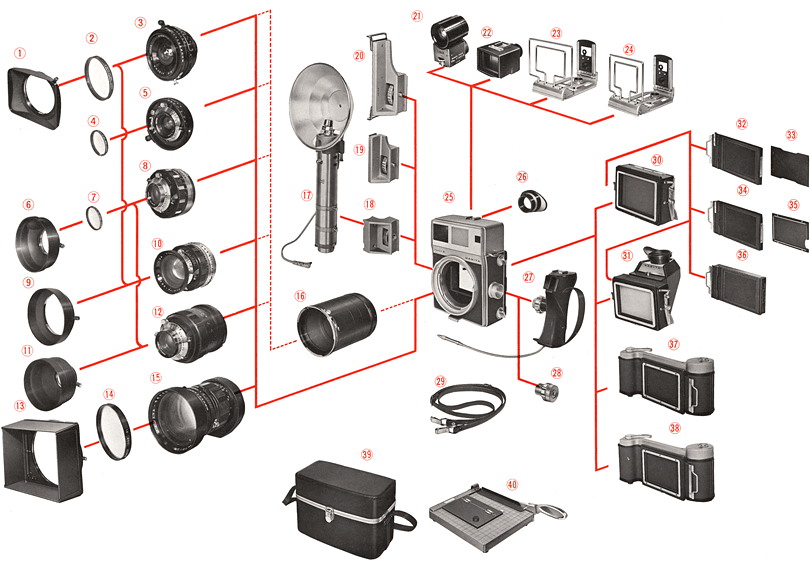

  1. Lens hood for 50 mm f/6.3 lens
  2. Filter, 72 mm dia, for 50 mm f/6.3 and 100 mm f/2.8 lenses
  3. 50 mm f/6.3 lens
  4. Filter, 43 mm dia. for 65 mm f/6.3 lens
  5. 65 mm f/6.3 lens
  6. Lens hood for 100 mm f/3.5 lens
  7. Filter, 40.5 mm dia. for 100 mm f/3.5 and 150 mm f/5.6 lenses
  8. 100 mm f/3.5 lens
  9. Lens hood for 100 mm f/2.8 lens
  10. 100 mm f/2.8 lens
  11. Lens hood for 150 mm f/5.6 lens
  12. 150 mm f/5.6 lens
  13. Lens hood for 250 mm f/5 lens
  14. Filter, 105 mm dia. for 250 mm f/5 lens
  15. 250 mm f/5 lens (exclusively for Super 23)
  16. Extension rings
  17. Flashgun for Mamiya Press
  18. Flashgun mounting piece
  19. Mounting bracket for Heiland flashgun
  20. Mounting bracket for Graflex flashgun
  21. Viewfinder for 50 mm wide angle lens
  22. Viewfinder for 65 mm wide angle lens
  23. Sportsfinder 6×9 cm for 100 mm and 150 mm focal length lenses (exclusively for Super 23)
  24. Sportsfinder, 6×7 cm for 100 mm and 150 mm focal length lenses (exclusively for Super 23)
  25. Camera body
  26. Eyecup
  27. Hand grip
  28. Tripod adapter for vertical photography
  29. Carrying strap
  30. Focusing screen holder
  31. Right-angle focusing back
  32. Cut film/plate holder (type J)
  33. Cut film adapter frame for one-quarter size of 4¾×6½ in.
  34. Cut film/plate holder (type A)
  35. Cut film adapter frame for 2¼×3¼ in.
  36. Film pack adapter
  37. 6×9 cm roll film holder
  38. 6×7 cm roll film holder
  39. Compartment case for Mamiya Press
  40. Mamiya cutter
Nomenclature Nomenclature

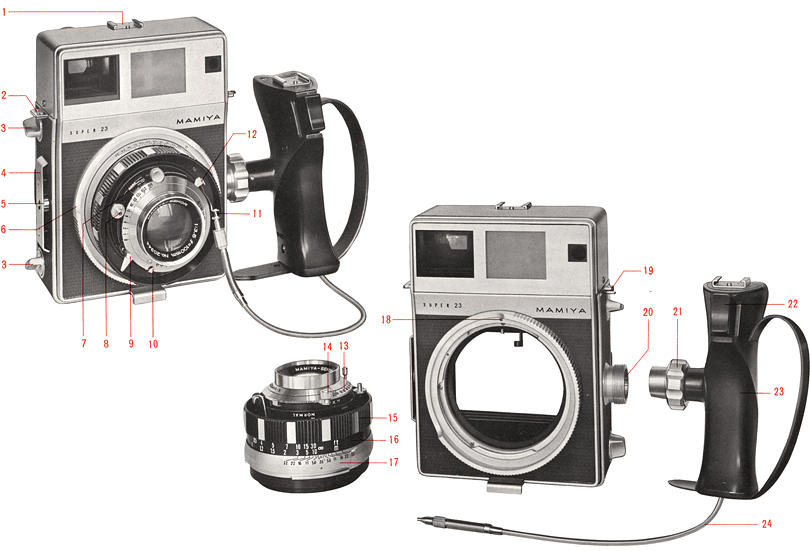

  1. Accessory Shoe
  2. Strap Eyelet (2)
  3. Lock Knob (4) for Swing Back Mount
  4. Flashgun Mount
  5. Flashgun Mounting Socket
  6. Bayonet Ring
  7. M-X Selector
  8. Synchroflash Terminal
  9. Shutter Release Lever
  10. Aperture Control Lever
  11. Cable Release Socket
  12. Press Focus Lever (Blade Arrester)
  13. Shutter Speed Dial
  14. Shutter Cocking Lever
  15. Focusing Ring
  16. Distance Scale
  17. Depth of Field Scale
  18. Lens Coupling Mark
  19. Cable Release Holder
  20. Hand Grip Socket
  21. Hand Grip Lock Ring
  22. Shutter Release Trigger
  23. Hand Grip
  24. Cable Release

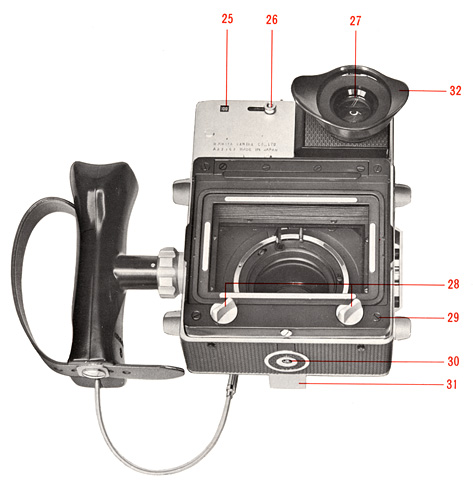

  25. Indicator Window for Viewfinder Field Frame
  26. Slide-over Button for Viewfinder Field Frame Selection
  27. Eyepiece
  28. Lock Knob (2) for Focusing Screen and Roll Film Holders
  29. Swinging Back Mount
  30. Tripod Socket
  31. Stabilizing Plate
  32. Eyecup
